02YR
From frame to finish — every layer addressed.
200K USD
Invested in the renovation, exclusive of carrying cost.
+2RM
One bedroom and one bathroom gained from the rebuild.
01
Structure

The frame, opened and reinforced.

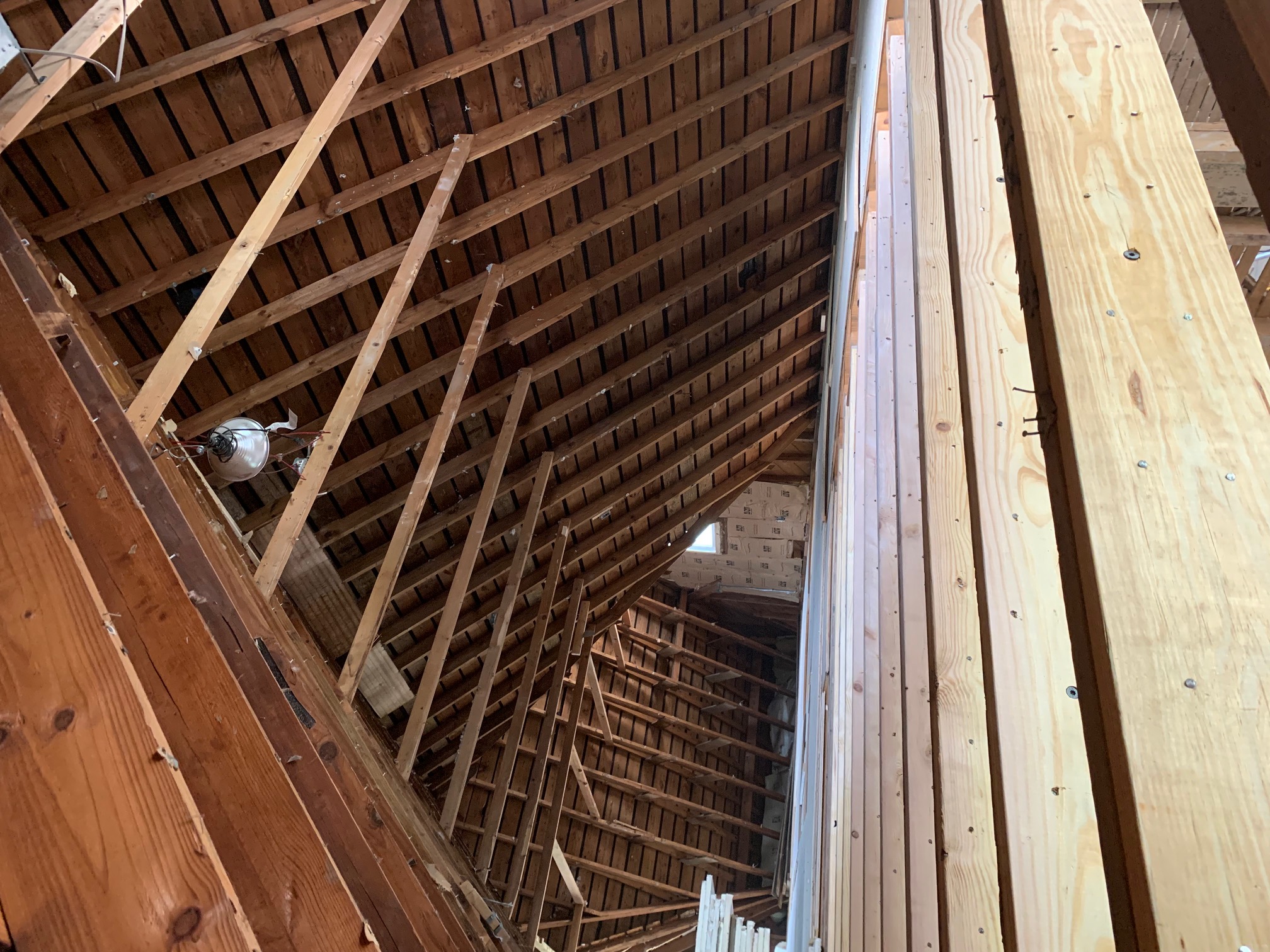

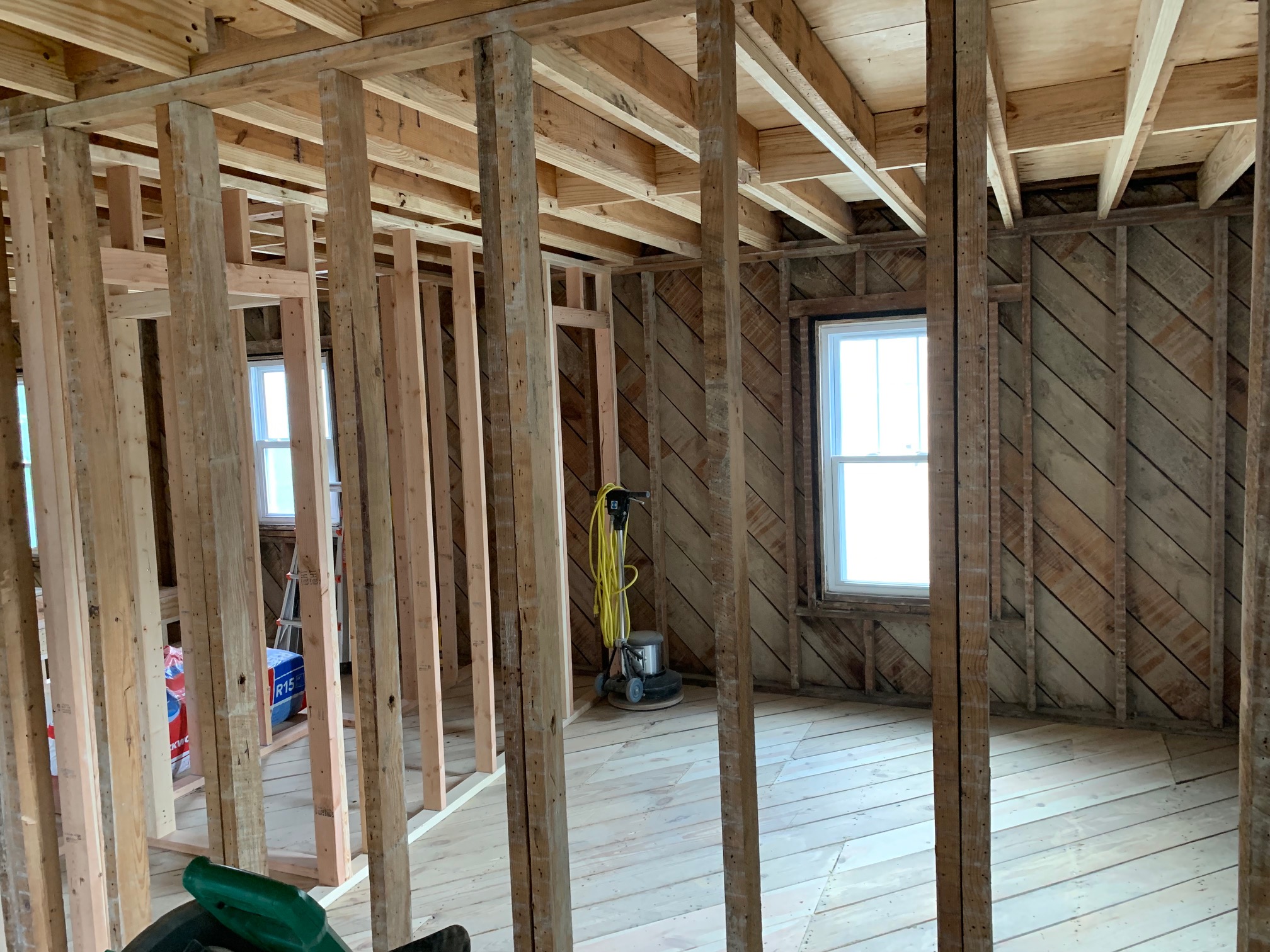

The entire frame was exposed and reviewed by structural engineers. Wall framing was reinforced where needed, and every second-floor joist was strengthened with newly added 2×8 members.

The old staircase and a secondary kitchen chimney were removed to enable the open-concept first floor. The staircase was relocated, freeing meaningful living area on both floors.

  • Frame fully exposed; engineer-reviewed
  • Second-floor joists doubled with 2×8 members
  • All subfloors removed and replaced — the originals were heavily damaged
  • Old staircase + kitchen chimney removed
  • New staircase relocated to open the plan
Relocated staircase

N° 01.01 · Relocated staircase

02
Envelope

A new envelope, ten feet tall.

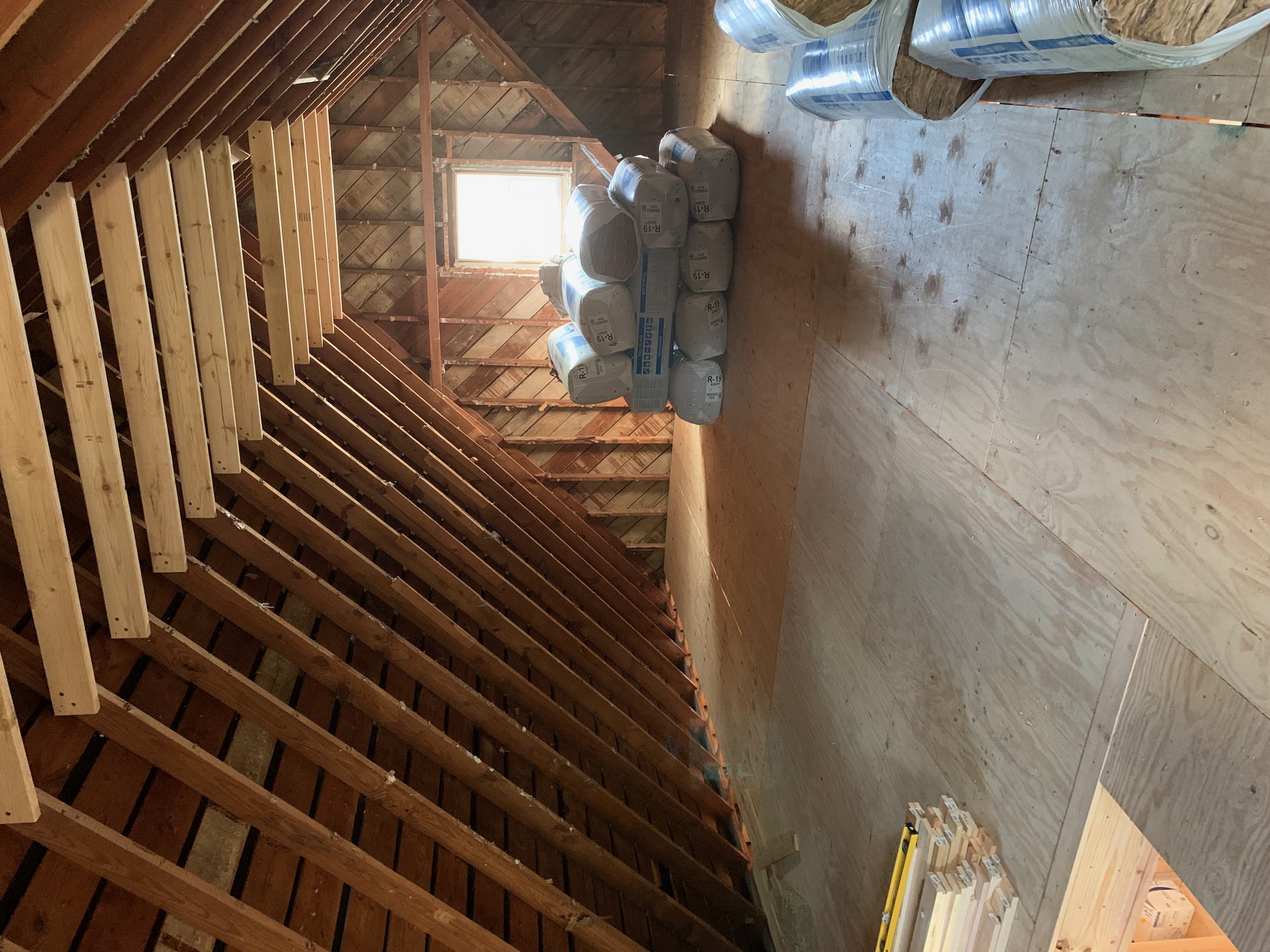

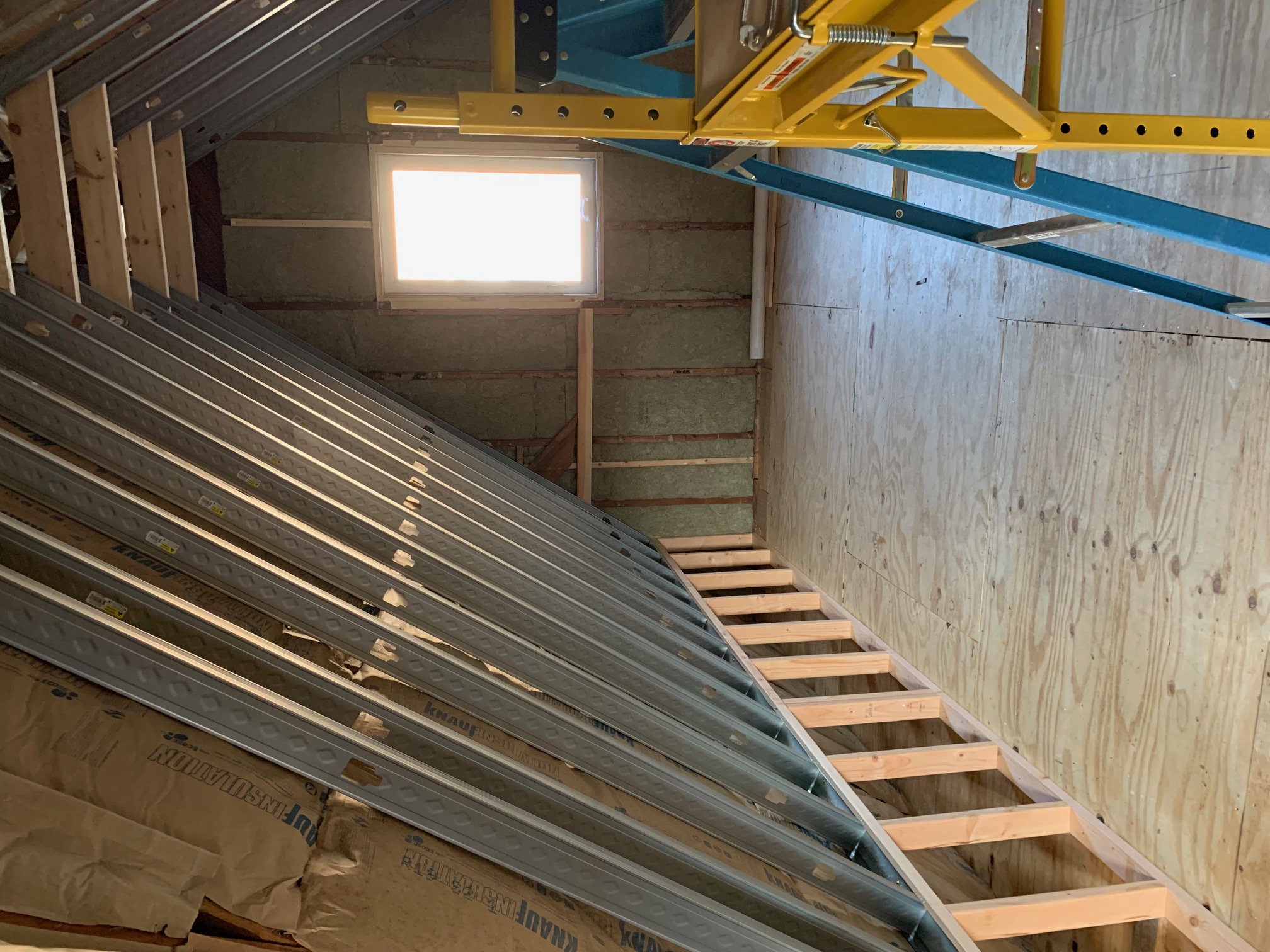

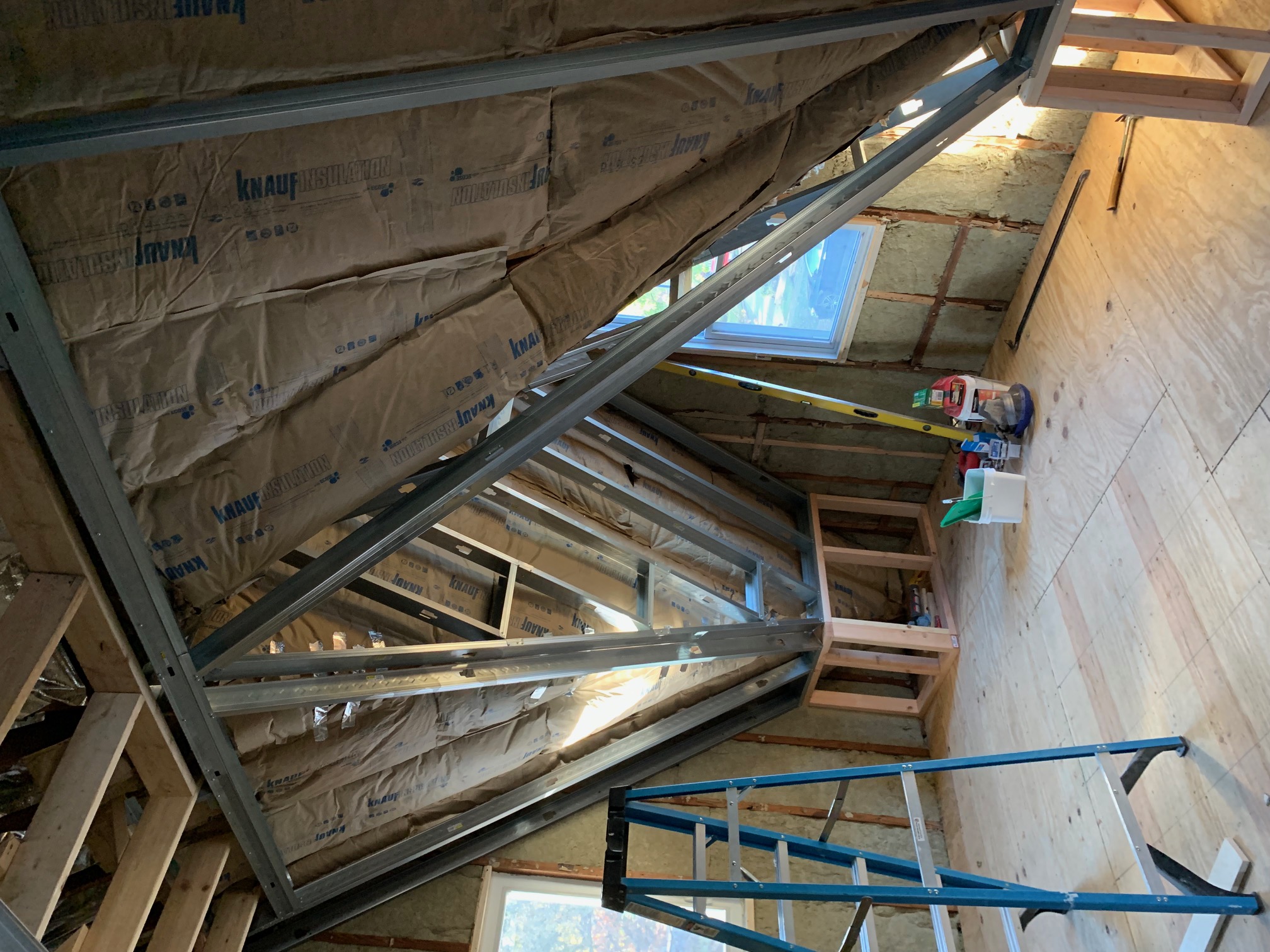

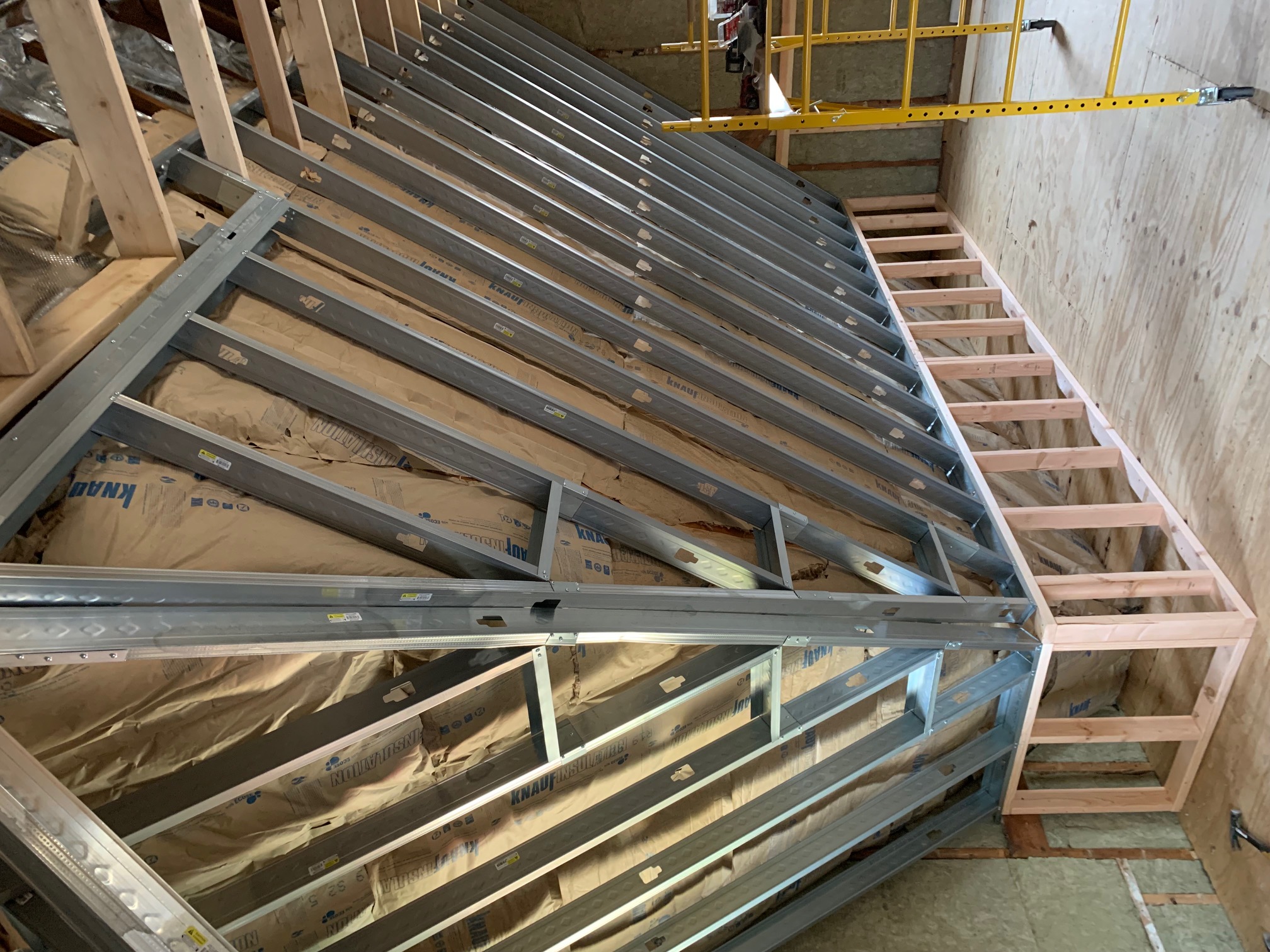

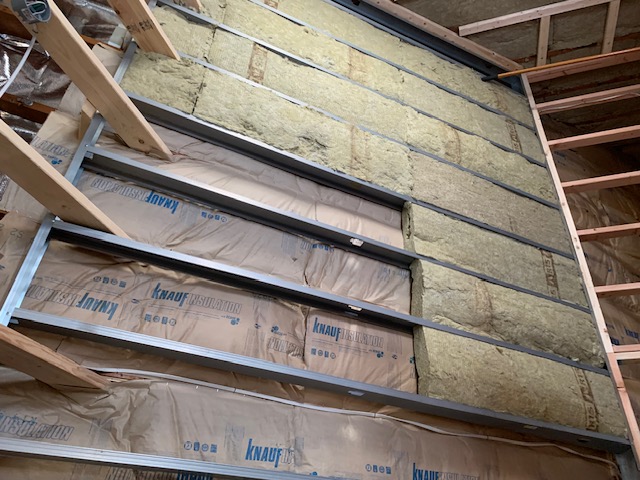

The blown-in insulation was removed so the second-floor ceilings could be raised. New ceiling ties were set at ten feet, and a steel sub-frame was added to give the rafters the depth needed for two layers of insulation and a radiant barrier.

The first-floor walls were also re-insulated. The result is a tight, quiet house — measured in winter at sixty-five degrees with one zone idle.

  • 10-ft vaulted ceilings raised on the second floor
  • Steel sub-frame for code-compliant insulation depth
  • Two insulation layers + radiant barrier
  • First-floor walls re-insulated throughout
Vaulted upper floor

N° 02.01 · Upper floor, vaulted

03
All-electric

Gas removed; heat pumps installed.

All gas appliances were removed. The old A/C, ductwork, and gas furnace went with them. In their place: a multi-zone, inverter-driven Senville AURA mini-split system — six indoor units, three outdoor compressors, rated to deliver heat at minus twenty-two degrees Fahrenheit.

Removing the ductwork freed the basement; the headroom is now over seven feet.

  • All gas removed; no fixed gas connection charge
  • 6 indoor heat pump units / 3 outdoor compressors
  • Heating guaranteed to −22 °F
  • Old ducts gone — basement headroom > 7 ft

The full energy story →

Outdoor heat pump compressors

N° 03.01 · Outdoor compressors

04
Electrical

Two hundred amps, all new wire.

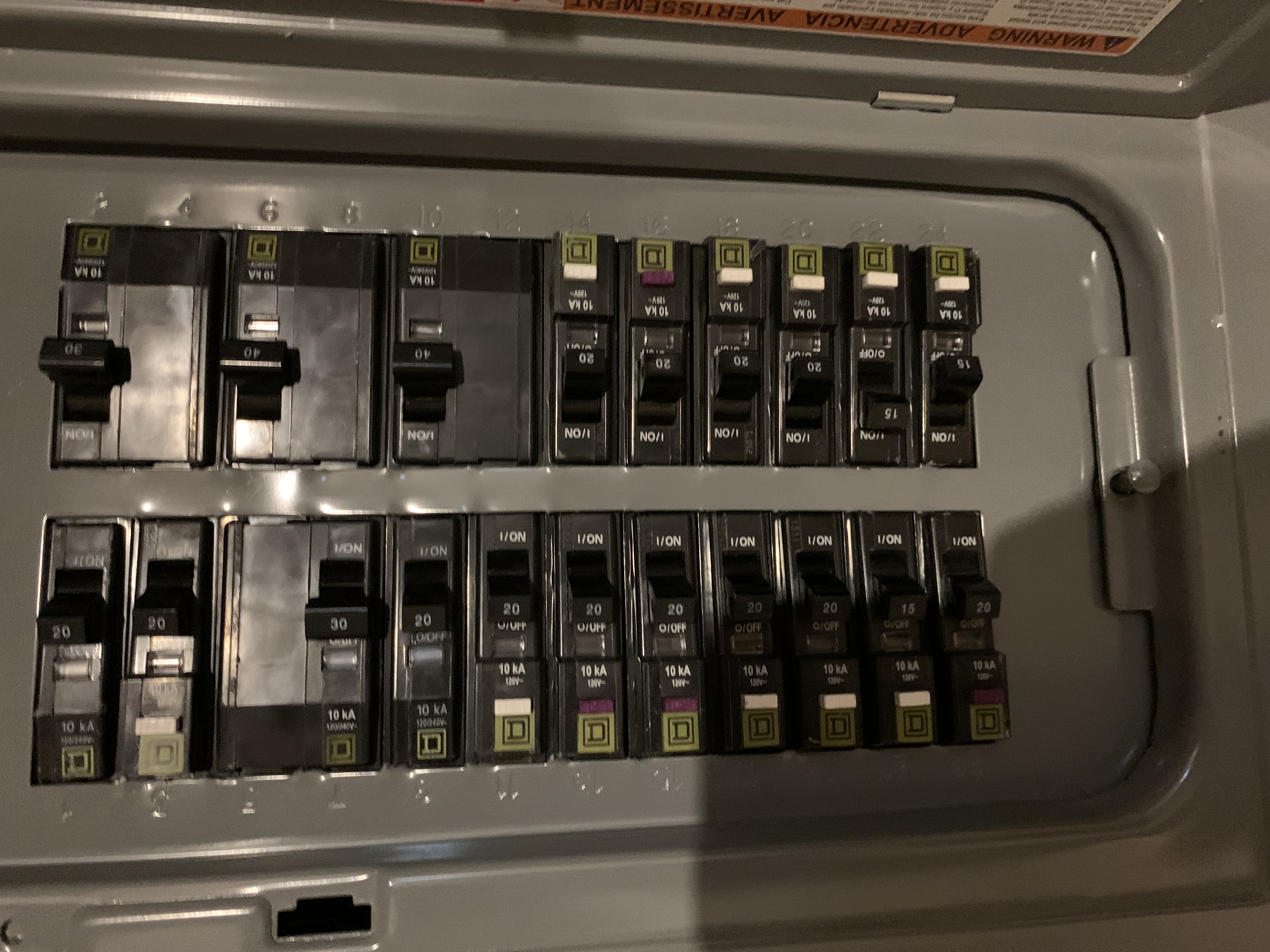

The original partial knob-and-tube wiring was fully removed. A 200-amp service was installed with two interior panels — a subpanel that shortens the runs through the house. AFCI and GFCI breakers throughout, per current code; smoke alarm wiring renewed.

  • Knob-and-tube fully removed
  • 200 A service · 2 interior panels
  • AFCI / GFCI breakers throughout
  • New low-voltage and smoke alarm wiring

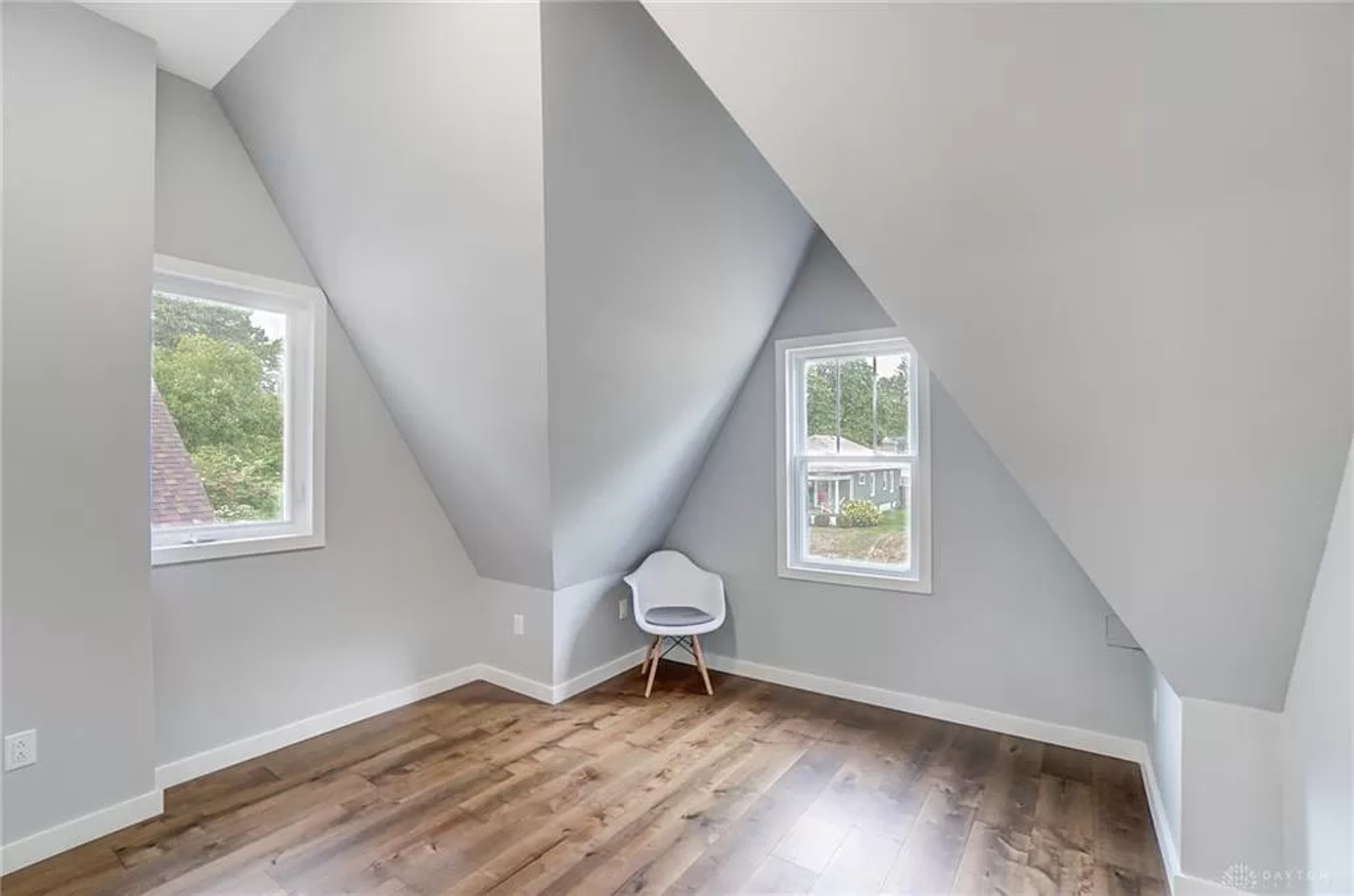

Insulated upper floor

N° 04.01 · Service feeds the upper-floor zone

05
Plumbing

A heat-pump water heater, short runs.

All old plumbing was removed and replaced — drain, waste, vent, and supply. A smart heat-pump water heater serves the house. Hot-water supply lines were intentionally kept short, so the wait at the tap is shorter and the standing loss is lower.

  • All new drain, waste, vent, and supply
  • Smart heat-pump water heater
  • Short hot-water runs by design
  • Low-water-consumption fixtures with Grohe fittings

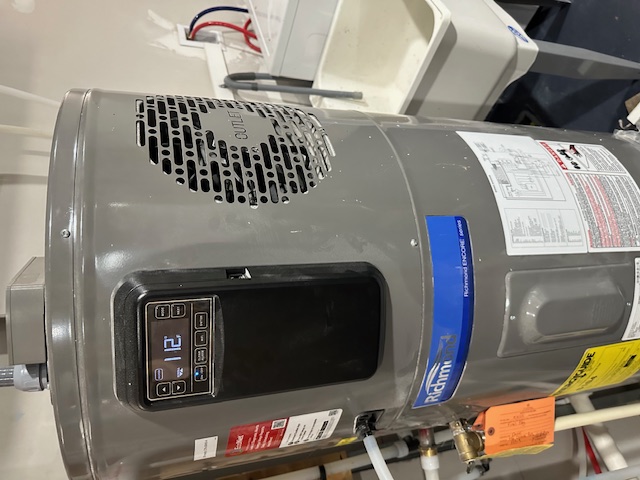

Smart heat pump water heater

N° 05.01 · Smart heat-pump water heater

06
Finishes

A surface for every gesture.

All flooring is new — wide-plank engineered hardwood across the main living areas, laid over new plywood subfloors. New three-panel solid wood doors at every interior threshold. Calacatta-style quartz countertops in the kitchen and the baths. Energy Star egress windows added on the upper floor. Fresh drywall and paint throughout. A four-camera Ring security system, remote-monitored.

  • All finish floors and subfloors replaced
  • Wide-plank engineered hardwood · main living areas
  • Solid wood three-panel doors
  • Calacatta-style quartz tops · kitchen + baths
  • Energy Star egress windows · upper floor
  • Four-camera Ring security · remote-monitored
  • Low-emission building materials throughout
Quartz island and gooseneck faucet detail

N° 06.01 · Kitchen island detail

Take a house apart slowly enough, and what you put back will outlast what you removed.

Three deliberate moves

A new geometry.

Move 01
Removed the chimney

The secondary kitchen chimney came down so the kitchen could open to the dining and living areas without a wall.

Move 02
Relocated the staircase

A new staircase position freed first-floor space and reorganized the second floor into three bedrooms.

Move 03
Raised the roof — internally

New ceiling ties at ten feet and a steel sub-frame turned a low attic into the most generous space in the house.


Documents

Permits and approved plans.

All work was permitted and inspected. The approved drawings are linked here.
